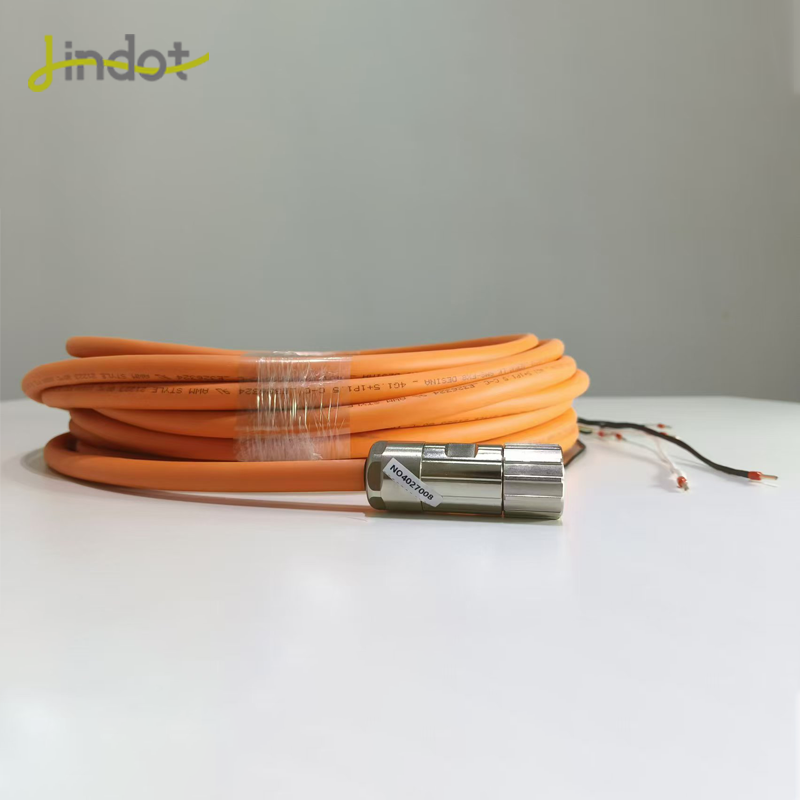

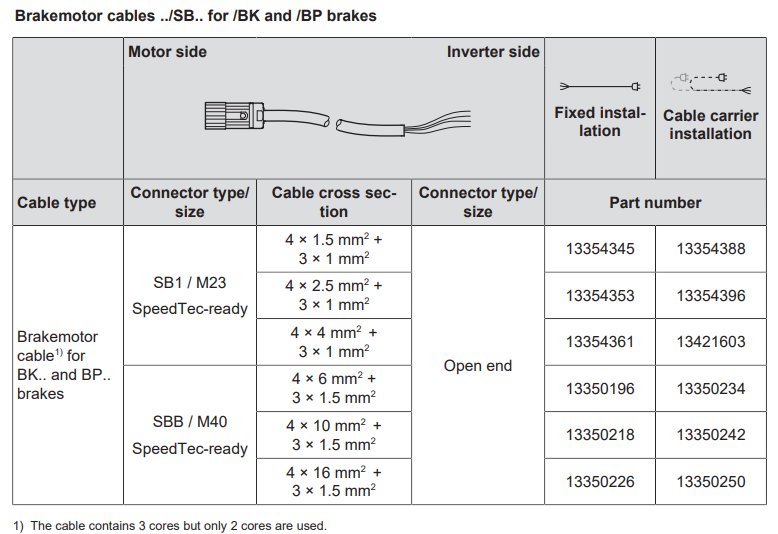

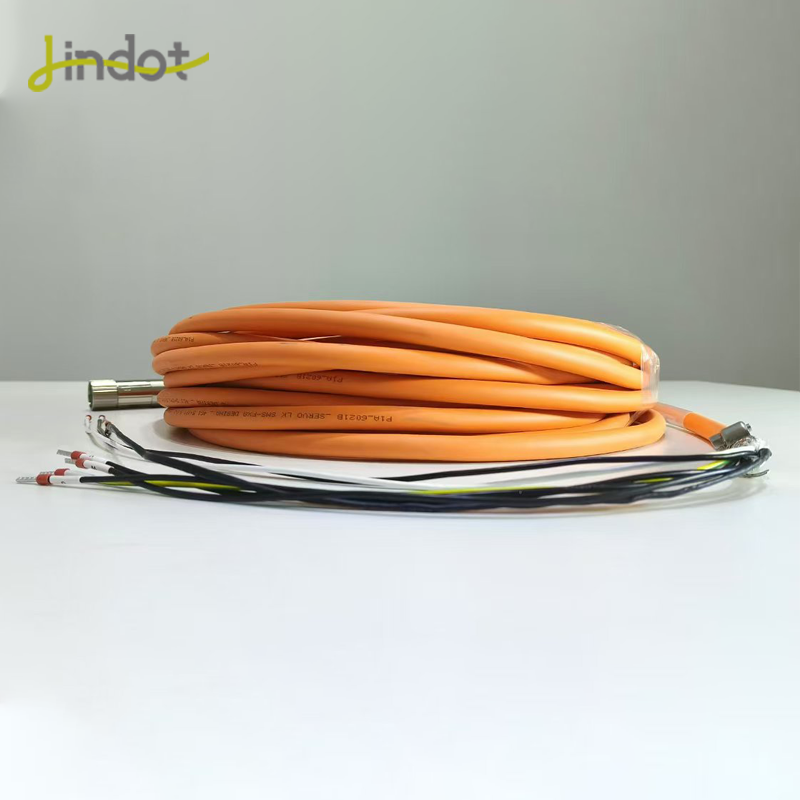

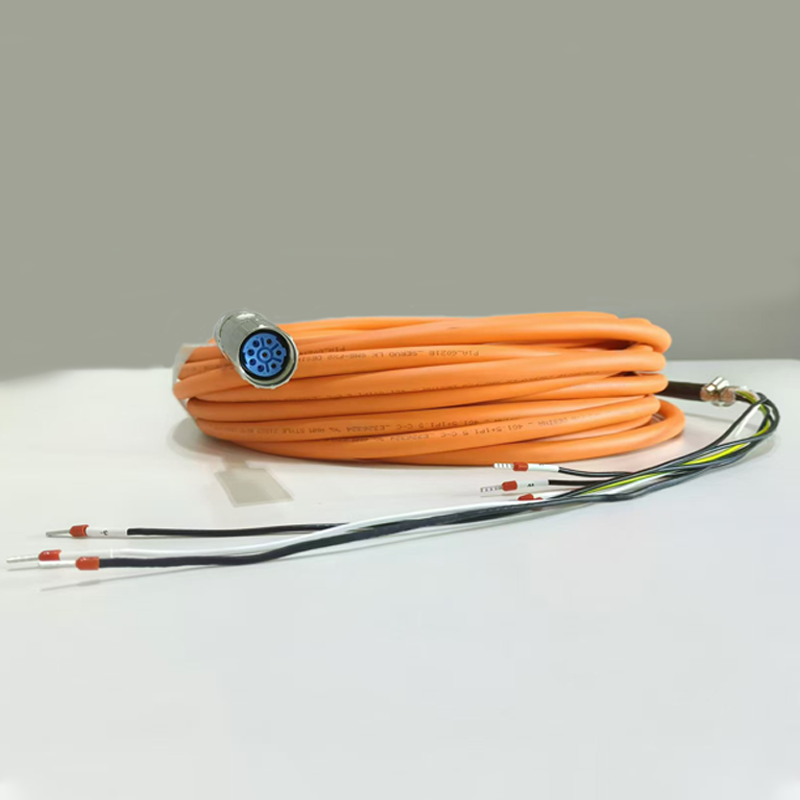

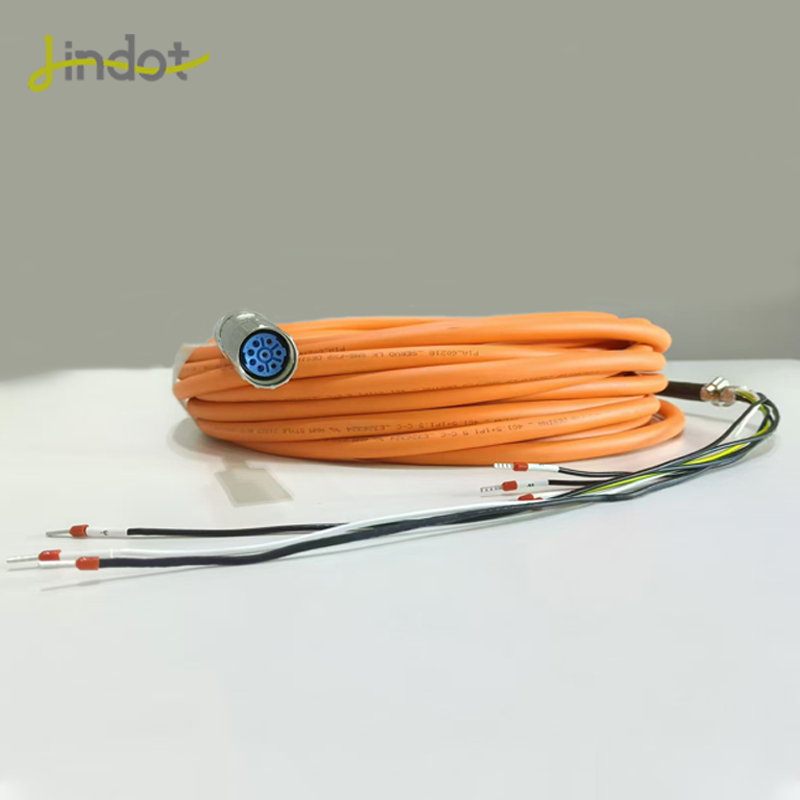

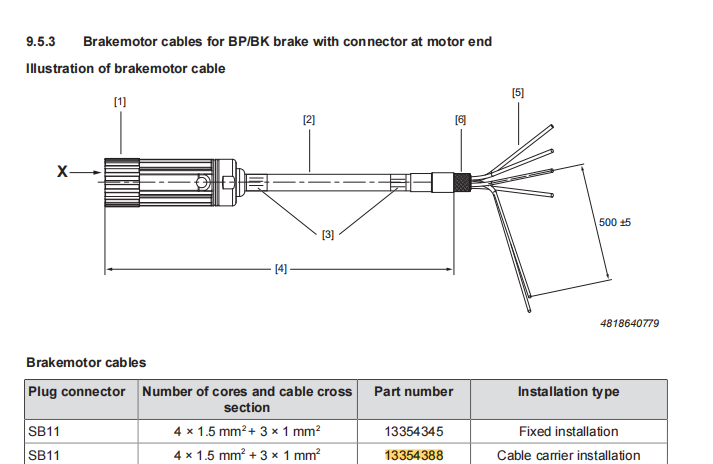

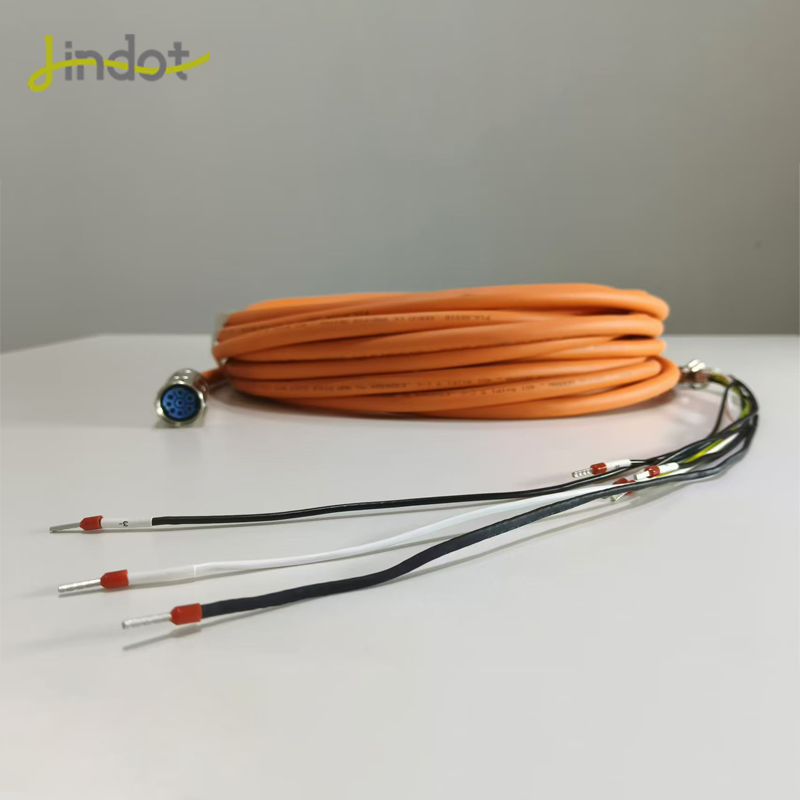

赛威 SEW 13354388# 伺服电机 动力线 - 耐油拖链动力电缆（13354345 13354353 13354361 13350196 13350218 13350226 13354396 13421603 13350234 13350242 13350250）
下载 赛威 SEW 13354388 技术参数 PDF文档
技术支持请邮件：harvey@lindot.com
机械参数 Mechanical data
| 原产国 Place of Origin | 中国 China |
| 型号 Model Number | 13354388 |
| 长度 Length Specification | 5m/ 10m/ 15m/ 20m/ 25m/ 30m/ Customized |
| 外径 Maximum cable outer diameter | 11 mm |
| 颜色 Outer sheath color | 绿色 Green |
| 材质 Core material | 镀锡铜丝 Tinned copper wire |
| 线规 Cable specifications | 6x2x2.5mm2 |
| 耐温 Surface working temperature | -20℃--80℃ |
| 产能 Production Capacity | 5000 piece/per Month /月 |
| 认证 Certificates | ISO:9001 |
| 应用 Application | 自动化行业 Automation Industrial |
| 起订量 MOQ | 1PCS/件 |
| 包装 Package | 防潮袋 Moisture-proof plastic bag |
| HS码 HS Code | 8544421900 |
| 付款 Payment | Paypal / T/T/ VISA |
| 货期 Lead time | 2-3 Days / 天 |
| 质保 Warranty | 1 Year / 年 |
电气参数 Electrical data
| 芯数-导体截面积 Number of cores x cross-ection mm2 | 6x2x0.25 |
| 动力线测试耐压 Test voltage, rms Power conductors | 4.0kV |
| 信号线测试耐压 Test voltage, rms Signal conductors | 2.0kV |
| 额定工作电压 Rated voltage V0/V according to EN 50395 | 300 V/300V |
| 阻燃等级 Standard for behavior in fire | flame resistance |
| 耐油标准 Oil resistance | EN 60811-2-1 (mineral oil only) |
静态固定布线 Static deployment
|
Smallest bending radius (fixed installation) 最小弯曲半径（固定安装） |
10.0mm |
|
Tensile load for permanently installed cable, max. 永久安装电缆的最大拉伸载荷 |
50 N/mm2 (7252 lbf/in2) |
|
Torsional stressAbsolute 扭转应力绝对值 |
30°/m |
移动拖链布线 Dynamic deployment
|
Smallest bendi ng radius(flexible installation in a cable carriers) 最小弯曲半径（电缆托架中灵活安装） |
195.0 mm |
|
Acceleration horizontal, max 水平加速度，最大 |
2 m/s² |
|
Maximum traversing velocity 最大移动速度 |
30 m/min |
|
Travel path 行程 |
5m |
|
Number of bends, max. 最大弯曲数量 |
100000 |
|
Tensile load for moving cable, max. 移动电缆的最大拉伸负载 |
20 N/mm² (2901 lbf/in²) |

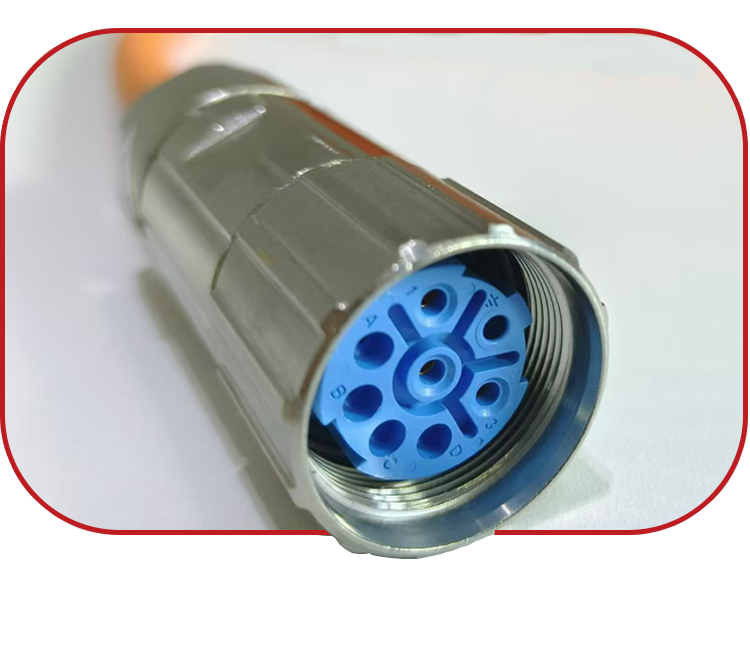

| Connector | original German imported connectors or domestic alternative connectors |
| Cable Characteristics |
The drag chain can withstand up to 12 million cycles The bending radius is 10 times the outer diameter (OD). Complies with the testing standards of GB/T 19666-2005, General Rules for Fire-resistant and Flame- retardant Cables. |
| Durability |
Extremely high mechanical strength and excellent weather resistance, suitable for long-term outdoor exposure. Military-grade (from -40°C to 130°C) and other harsh environmental requirements. The outer sheath material is PUR / TPE, etc. resistant to torsion, swinging, oil, |
| Flame retardancy |
made of low-smoke, non-toxic, non-corrosive, halogen-free flame-retardant Insulation material with export standards such as UL, CE, VDE, ROHS, and others for the European and American markets explosion-proof for mining, PE for the food industry, nuclear power, wind power (IP67), and marine grade (salt spray). |
| Service life | Suitable for normal indoor use with a lifespan of 15-20 years (with indoor humidity not exceeding 75%). |
| Warranty Commitment | One-year warranty with lifetime maintenance |
